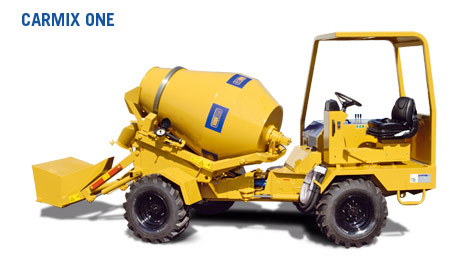

Drum capacity 1400 liters. Real concrete output: 1 m3 per batch.
Double Mixing screws. Cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed independent from r.p.m of diesel engine.
Quick discharge by drum tilting
Diesel Cummins, A1700 water-cooled, 3 cylinders. Power 28 kW.(37 HP) set at 2800 r.p.m. Electric starter.
Hydrostatic. A variable outlet pump drives the hydraulic two speed motor connected to the differential through the two speed reducers. 4 wheels driving.
Working speed from 0 to 7 km/h, road transfer from 0 to 14 km/h. Electric servo control.
Reversible seat with automatic inversion of hydraulic steering circuit. ROPS-FOPS canopy.
|Chassis||Articulated steel profile specially engineered for off-road operations.|
3 circuits. Variable outlet pump for hydrostatic transmission and drum rotation. Gear pump for services and steering. Heat exchanger type water/oil-air.
|Loading Shovel||Capacity 180 liters.|
Slewing and hydraulically tilting.
|Water System||Self contained. Hydraulic driven water pump. Water meter.|
|Gradient||Fully loaded 30°.|
|Brakes||Disc brakes. Twin independent circuit for parking and emergency. Mechanical parking brake acting on rear axle.|
|Tires||Off-Road industrial type 11,5/80 - 15,3 PR 10.|
|Steering||Hydrostatic. Radius internal mm. 2700, external mm. 4600|
|Electric System||12 Volt. 80 Ah battery.|
|Tanks||Water: 310 liters. Diesel: 35 liters. Hydraulic oil: 80 liters.|
|Weight||Kg. 2800 in running order.|
|Catalogue||The machine is equipped with Use and Maintenance and Spare Parts Manuals according to CE regulations.|
