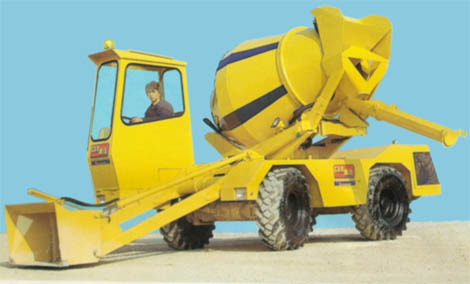

CARMIX 2000
Specification
| Mixing Unit | Drum Capacity 3.000 litres. REAL CONCRETE YIELD PER BATCH OVER 2 M3. Double mixing screw, man hole for emergency unloading. Drum rotation by hydraulic motor through planetary reducer. Mixing and discharging speed independent from RPM of diesel engine. ELECTRIC SERVO-CONTROL FOR MIXING AND DISCHARGING. |
| High Discharge | AT 1.8 METRES TO THE 4 SIDES OF THE VEHICLE. The mixing unit is slewing hydraulically through 270°. Discharging by reversing drum rotation. Quick discharge by tilting drum. |
| Diesel Engine | transversal on the rear. "VM" type 3105 SUN air cooled 3 cylinders. MAXIMUM POWER 68 HP DIN 70020. |
| Loading Shovel | 300 litres capacity with PATENTED VOLUMETRIC BATCHING FEATURE. |
| Transmission | Fully automatic hydrostatic type Hydromatic. A variable outlet pump drives the variable outlet motor connected to the differentials through a 2 speed reducer. Reverse by electric control lever below steering wheel. |
| Speed | Working speed from 0-8 km/h. Transfer speed from 0 to 22 km/h. |
| Steering | hydraulically servo assisted. |
| Traction | INTEGRAL TYPE ON 4 WHEELS. Heavy duty differential axles Hurth with planetary reducers. Front axle steering, rear axle fixed and swinging. |
| Gradient | Fully loaded over 45% angle. |
| Driving Cab | Front on side of loading shovel. Protection with safety glasses (Door with window and lock on request). |
| Hydraulic System | 3 independent circuits. Two variable-outlet pumps for vehicle transmission and drum rotation. One twin pump for services. Inlet and outlet filters. |
| Heat Exchanger | With adjustable thermostat for cooling hydraulic oil circuit. |
| Water System | Self contained. Hydraulic driven water pump, water meter, Two lateral water tanks 300 litres each. Easily accessible selector valves. Washing outlet. High pressure washing pump on request. |
| Brakes | Multi plates oil bath disc brakes inside differential axles. Twin independent circuits. Parking brake acting on the transmission. |
| Tires | Off-road industrial type 12.5/18. |
| Turning Radius | Internal cm. 315. |
| Electric System | Standard 12 volts. 110 AH battery for electric starter and road lighting. |
| Tank Capacities | Water 500 litres. Hydraulic oil 150 litres. Fuel 110 litres (two tanks). |
| Slewing Chute | Fitted with two pins easily detachable to increase the discharge height. Hydraulic tilting controlled from driving seat. |
| Chassis | Steel profile specially engineered for off-road operations. |
| Weight | About 4700 kg. EQUALLY DISTRIBUTED ON BOTH AXLES. |
| Safety | ALL CARMIX are standard fitted with arresting and locking valves to guarantee the maximum safety of the operator. |
