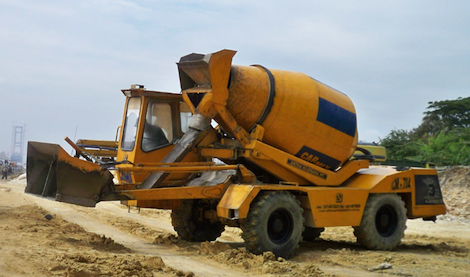

CARMIX 3500
Specification
| Mixing Unit | Drum Capacity 4.750 liters. REAL CONCRETE YEILD PER BATCH 3.5 M3. Double mixing screw, man hole for emergency unloading, Drum rotation by hydraulic motor through planetary reducer. Mixing and discharging speed independent from RPM of diesel engine. ELECTRIC SERVO CONTROL FOR MIXING AND DISCHARGING. |
| High Discharge | OVER 2 METRES TO THE 4 SIDES OF THE VEHICLE. The mixing unit is slewing hydraulically through 300°. Discharging by reversing drum rotation. Quick discharge by tilting drum. |
| Diesel Engine | transversal on the rear. PERKINS 1004,4 TURBO, watercooled. MAXIMUM POWER KW (HP) 78,67 (107). Net. KW (HP) 76.91 (104,6). |
| Loading Shovel | 500 litres capacity with PATENTED VOLUMETRIC BATCHING FEATURE. |
| Transmission | Fully automatic hydrostatic type. Pump and motor are connected to the differentials through a 2 speed reducer. Reverse by electric lever below steering wheel. |
| Traction | INTEGRAL TYPE ON 4 WHEELS. Heavy duty differential axles with planetary reducers. Front axle steering, rear axle fixed and swinging. |
| Speed | Working speed from 0-7 km/h. Transfer speed from 0 to 19 km/h. |
| Steering | hydraulically servo assisted. Load Sensing type. |
| Gradient | Fully loaded 40% grade. |
| Steering Radius | Internal cm. 295; external cm. 585. |
| Driving Cab | Front on side of loading shovel. Protection with safety glasses (Door with window and lock on request). |
| Hydraulic System | 3 independent circuits. Two variable-outlet pumps for vehicle transmission and drum rotation. One pump for services. Inlet and outlet filters. |
| Heat Exchanger | Oil - water type. |
| Water System | Self contained. Hydraulic driven water pump, water meter, Two lateral water tanks 450 litres each. Easily accessible selector valves. Washing outlet. |
| Brakes | Oil bath disc brakes inside differential axles. Twin independent circuits. Parking brake acting on the transmission. |
| Tires | Off-road industrial type 14.5/20. |
| Electric System | Standard 12 volts. 120 AH battery for electric starter and road lighting. |
| Tank Capacities | Water 900 litres. Hydraulic oil 150 litres. Fuel 130 litres (two tanks). |
| Slewing Chute | Fitted with two pins easily detachable to increase the discharge height. Hydraulic tilting. |
| Chassis | Steel profile specially engineered for off-road operations. |
| Weight | About 6650 kg. EQUALLY DISTRIBUTED ON BOTH AXLES. |
| Safety | ALL CARMIX are standard fitted with arresting and locking valves to guarantee the maximum safety of the operator. |
