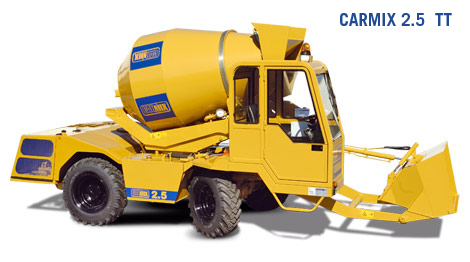

CARMIX 2.5 TT
Drum Capacity 3.400 liters. Concrete output: 2,5 m3 per batch.
Discharging by reversing drum. Quick discharge by drum tilting. The mixing unit is slewing hydraulically through 300° for high discharge at 1,9 m to the four sides of vehicle
Diesel PERKINS 1104 C-44 TA Turbo, water – cooled, 4 cylinders. Rated power KW 63 (85 HP) set at 2300 rpm. Engine mounted transversal on the rear.
Hydrostatic, Hydromatic-Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel driving.
Working speed from 0 to 9 km/h, road transfer from 0 to 25km/h. Electric servo control.
Front cab on side of loading shovel. ROPS-FOPS type complete of double closing door.
|Chassis||Steel profile specially engineered for off-road operations.|
Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/ oil-air type.
All hydraulic functions of shovel and slewing drum controlled by a single
|Loading Shovel||Capacity 400 liters. Complete with hydraulic opening gate.|
Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
|Water System||Self-contained. Hydraulic driven water pump, water meter, washing outlet.
High pressure water pump. (On request)
|Gradient||Fully loaded 30°.|
|Brakes||Oil bath disc brakes inside differential axles. Twin independent circuits. Negative hydraulic parking brake.|
|Tires||Off road industrial type 12.5-20 PR 12.|
|Steering||Hydrostatic. (2 steering) Radius: Internal mm.2400, external mm. 4850.|
|Electric System||12 volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off|
|Tanks||Water: 2x270 liters. Diesel: 105 liters. Hydraulic oil: 80 liters.|
|Weight||About Kg. 6000. Equally distributed on both axles.|
Machine equipped with checking and block valves for maximum safety of the operator. Self Control avoids drum to slew if shovel’s arm is lifted.
|Catalogue||The machine is equipped with Use and Maintenance and Spare Parts Manuals according to CE regulations.|
